PVC/UPVC/Plastic Irrigation F/M Union Ball Valve High Thickness Straight Through Type

Model NO. : NB-QXHY

Structure : Fixed Ball Valve

Type : Fixed Ball Valve

Function : Shutoff

Temperature : Normal Temperature

Standard : ANSI,DIN,BS,JIS,Cns

Application : Industrial Usage, Water Industrial Usage, Household Usage

Color : Light Gray, Deep Gray, Black, White

Standard Like : DIN, BSPT, ASTM, ANSI

Quality : EPDM Rubber+PVC Ball+PVC Handle, High Thickness

Package : Plastic Bag Each One, Stron Export Carton

Feature : New Fashion Handle, Easy Use, Long Service Life

Transport Package : Carton, Polybag, Color Box or Customized

Specification : 1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4"

Trademark : NB-QXHY

Origin : Zhejiang, China

HS Code : 8481804090

Supply Ability : 70000 Piece /Month

Media : Water

Material : PVC

Connection Form : Socket or Threaded

Driving Mode : Manual

Nominal Pressure : Pn10, Pn16

Channel : Straight Through Type

Samples : US$ 3/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

MOQ : 1pc

Packaging Details : Customized

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

PVC/UPVC/Plastic Irrigation F/M Union Ball Valve with Double Single Type

1. Product Specification:

PVC/UPVC/Plastic Irrigation F/M Union Ball Valve High Thickness Straight Through Type

*NO.*	*PART*	*Material*	*QTY*
1	Handle	PVC	1
2	O-Ring	EPDM	2
3	Stem	PVC	1
4	End Connector	PVC	1
5	Union Nut	PVC	1
6	Ball	PVC	1
7	Seat	TPE	2
8	O-Ring	EPDM	1
9	Body	PVC	1

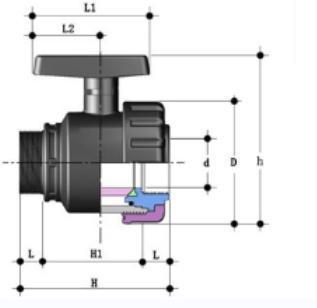

2. Prpduct Dimensions:

*SIZE*	D	d	H	H1	h	L	L1	L2
DN20 (3/4")	58.8	18	79.5	45	87	18	64.5	39.3
DN25 (1")	67.5	23	91	51	101	22	75	44
DN32( 1 1/4")	79.3	31.4	105.5	57	115	24	85.5	51.5
DN40(1 1/2")	92.4	36	117.5	69.5	129	24	94	55
DN50 (2")	113	46.3	146	90	159	28	110	59.5
DN65( 21/2")	144.5	63.5	170	102	191	34	137.4	79.7
DN80 (3")	168	77	201.5	125.5	227.5	38	157.8	96.5
DN100 (4")	210	96	250	166	263.7	42	180	107

3. Products advantages:

1) No leak, positive shut off.
2) Pressure retaining test for each piece.
3) Excellent flow characteristics and flow control.
4) Switch test for each piece.
5) Standard pressure test for each piece
6) Steady opening and closing, lower torque, ergonmic handle.

4. Production process:

Each product will be done the leakage test!

PVC/UPVC/Plastic Irrigation F/M Union Ball Valve High Thickness Straight Through Type

5. Handle options:

1) Various types available
2) Vacant and solid available

PVC/UPVC/Plastic Irrigation F/M Union Ball Valve High Thickness Straight Through Type

6. Product Packing:

PVC/UPVC/Plastic Irrigation F/M Union Ball Valve High Thickness Straight Through Type

7. Product Application:

1) Agricultural irrigation 2) Swimming pool
3) Sewage treatment 4) Water treatment
5) Piping system 6) Water recycling project

PVC/UPVC/Plastic Irrigation F/M Union Ball Valve High Thickness Straight Through Type

8. Product Certificate:

9. Our Factory:

10. Our Service:

Our Advantages:

(1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;

(2) Well and high quality control, within 1% leakage;

(3) Environment friendly, non-toxic, good looking and long service life;

(4) Light weight, easy to handle and transport;

(5) Soft colors and excellent design, suitable for installation either exposed or hidden;

(6) Wonderful ability in chemical corrosion resistance;

(7) Easy and fast installation, making cost minimized;

(8) Widely used in building, irrigation, industry and swimming pool;

(9) Small order acceptable;

(10) Customer's design and logo are welcome.

Why Us?

(1) We provide OEM service and submit Various styles, latest designs to our clients;

(2) We work with big customers in Southeast Asia, Africa, Middle East, North America, South America;

(3) According to the needs of customers in different regions, we match different quality and thickness valves with various styles, so that our customers are very competitive in the market!

(4) Our high quality PVC valve can be consistent with European and American national brand valves!

(5) We have great experience on providing high quality products and most professional service to clients about 10 years more!

(6) Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves, PP Fittings, irrigation products to buy together, so that the customer product line is more abundant, both quality and delivery time are guaranteed.

(7) We can flexible from China any port export! Welcome you inquiry us!
